Description

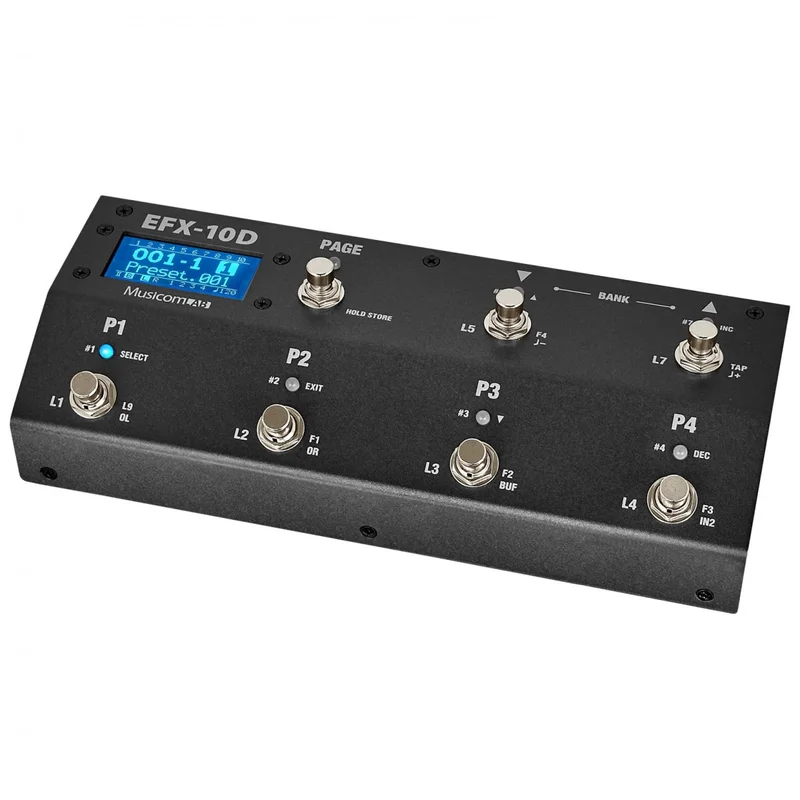

EFX 10D – AUDIO CONTROLLER
10 mono loops
Programmable loop order each preset
One of 2 inputs is selectable using TRS jack
Output L/R are capable using TRS jack
Loop5/6, Loop7/8 and Loop9/10 are capable using TRS jacks
Up to 2 loops can be assigned to Carry-over between presets
801 preset memory locations
(200 banks of 4 presets, plus a Global Preset)
Create up to 800 songs
Organized the 800 songs in to 64 sets of 120 songs
4 function switches via 2 TRS jacks
(Latched / Momentary / Tempo Sync)
Flexible switch setting
Click-Less functions
16 MIDI messages (PC, CC, Note or SysEx) each preset
8 MIDI messages (PC, CC, Note or SysEx) each switch
8 Audio actions each IA switch
MIDI Time Clock or Analog Tempo out for TAP-TEMPO
One expression pedal or 2 foot-switches (XPDL)
USB Connection to a PC or MAC
Graphic LCD for to show a lot of information
Easily copy presets, banks, songs and sets
Easily name presets, songs, sets, pages and switches
Heavy-duty footswitches
Powered by 9VDC(center negative) 250mA
Dimensions : 263(W) x 110(D) x 68(H) mm
10.4(W) x 4.3(D) x 2.7(H) inches
Weight : 1,000 g / 2.2 lbs
MANUAL
